Model No.: TM-189
CAS No.: 25608-12-2
Other Names: hand lay up FRP hull products resin
MF: C3H5NO)n
EINECS No.: 208-750-2
Type: Synthetic Resin And Plastics
Brand Name: TIANMA
Model Number: TM-189, TM-189
Appearance: Thixotropic purple liquid
Packaging: metal barrel
Usage: hand lay up FRP hull products resin
Net weight: 220kg
Certificate: Msds
storage period: 90 days .but it's 30 days if add thixotropice accelerator
Storage Condition: Below 25℃ in dark
Keywords: hand lay up FRP hull products resin
Place of Origin: Jiangsu, China
Purity: 66-72
Brand: TIANMA
Packaging: metal barrel
Supply Ability: 1000000000 Ton/Tons per Year
Port: Shanghai Port

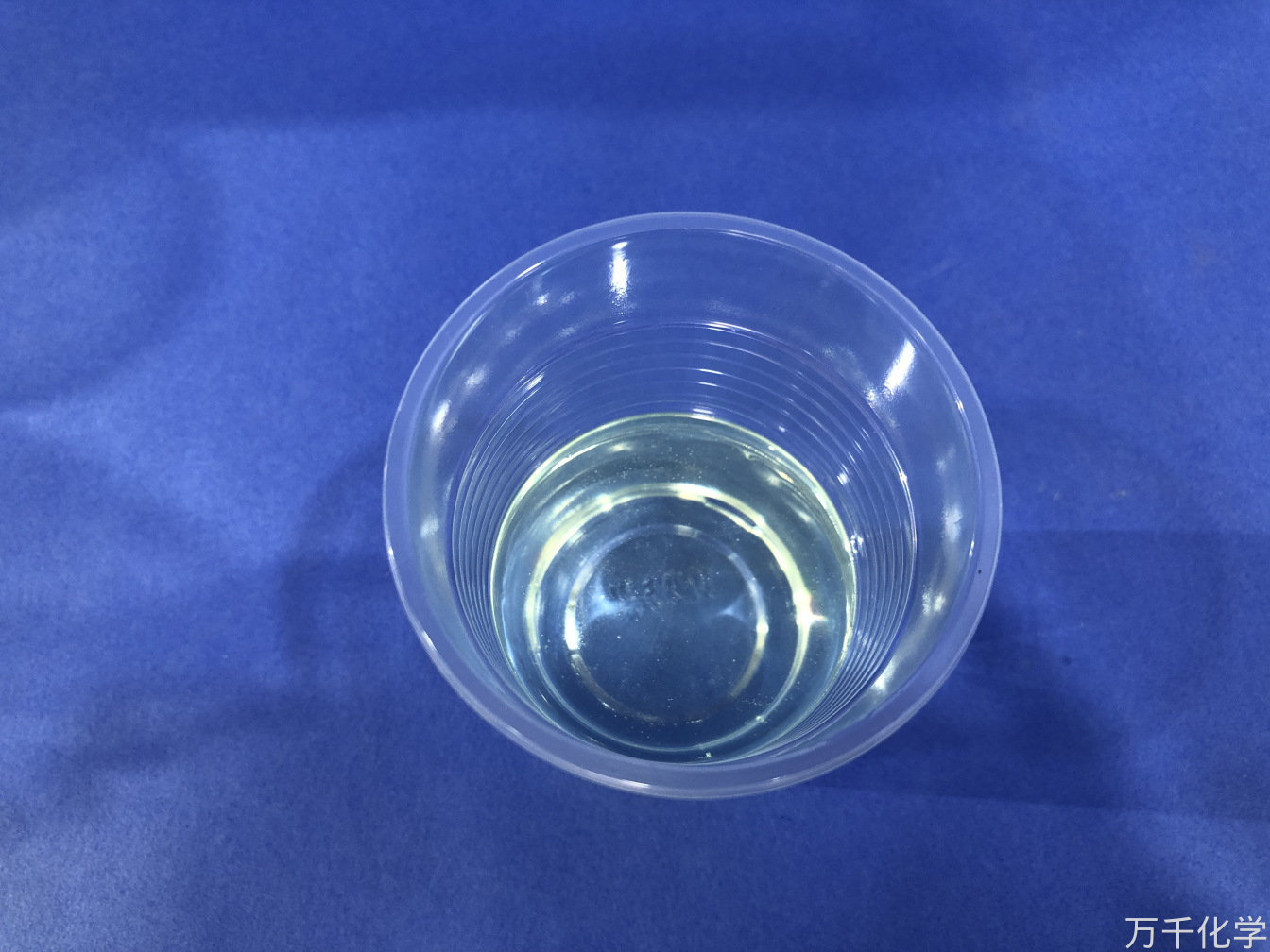

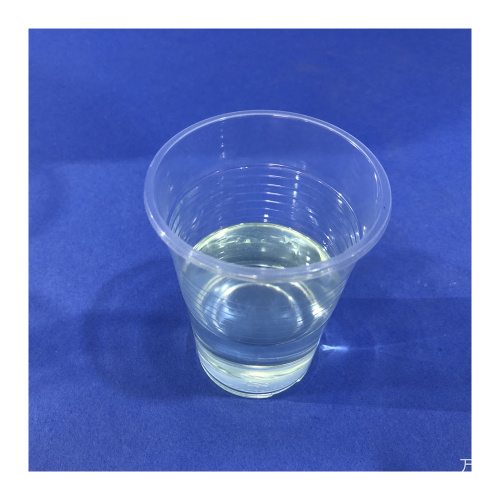

TM-189 water proof chemical resistance UP resin features low viscosity, higher elongation , suitable for hand lay up FRP hull products, this resin has been certificated by CCS.
1. liquid resin property:
|
item |
unit |
standard |
testing method |
|
appearance |
—— |
transparent light yellow liquid |
GB/T 8237.4.1.1 |
|
viscosity |
25℃,Pa.S |
0.25~0.45 |
GB/T 7193.1 |
|
gel time |
25℃,min |
10.5~21.5 |
GB/T 7193.6 |
|
acid value |
mgKOH/g |
19~27 |
GB/T 2895 |
|
solid content |
% |
59~65 |
GB/T 7193.3 |
Gel time: 50% cyclohexanone peroxide paste: 4% accelerator E1: 4%.
2. Casting body property(for reference)
|
item |
unit |
measured data |
testing method |
|
Barcol hardness |
—— |
46 |
GB 3854—83 |
|
distortion temperature |
℃ |
57 |
GB 1634—04 |
|
elongation |
% |
4.0 |
GB/T 2568—95 |
|
Water absorption |
% |
0.1 |
GB/T 1462—88 |
Notes:
1)casting body preparation method accord to GB 8237—87.
2) Curing system: curing agent 55% MEKP 2% accelerate E1:2%
3)Post cure: 60℃×3h + 80℃×2h
3.FRP products property(for reference)
|
item |
unit |
measured data |
testing method |
|
bending strength |
MPa |
298 |
GB/T2570—95 |
|
bending modulus |
MPa |
1.35×104 |
GB/T2570—95 |
Notes:
1)FRP sample preparation method accord to GB 8237—87.
2)Curing system: curing agent 55% MEKP 2% accelerate E1:2%
3)Post cure: 60℃×3h + 110℃×3h
4.Recipe (for reference)
|
Item |
Parts by weight |
|
TM-189 UP resin |
100 |
|
Curing agent (55%MEKPO 50% cyclohexanone peroxide paste) |
2-4 |
|
Accelerator E1 |
1-4 (according to local temperature) |
5.Storage
Stored under 25℃ shelter,flame and heat isolated, 3 month shelf life.
